LiDAR Mapping Muskoka
High-precision terrain mapping for cottage construction, site planning, and shoreline documentation across Muskoka's challenging landscape.
Request a Quote →Mapping What You Can't See
Muskoka's rugged beauty comes with surveying challenges. Dense forest canopy, rocky outcrops, steep slopes to the water, and irregular terrain make traditional ground surveys difficult, time-consuming, and expensive.
Drone LiDAR changes the equation. Our sensors fire up to 350,000 laser pulses per second, penetrating tree cover to map the actual ground surface beneath. In a single flight, we capture comprehensive terrain data across your entire property.
Whether you're planning a new cottage build, documenting a shoreline, or designing drainage for a challenging lot, LiDAR gives you the precise elevation data you need to make informed decisions.
Full Point Cloud vs Bare Earth
< SLIDE TO COMPARE >

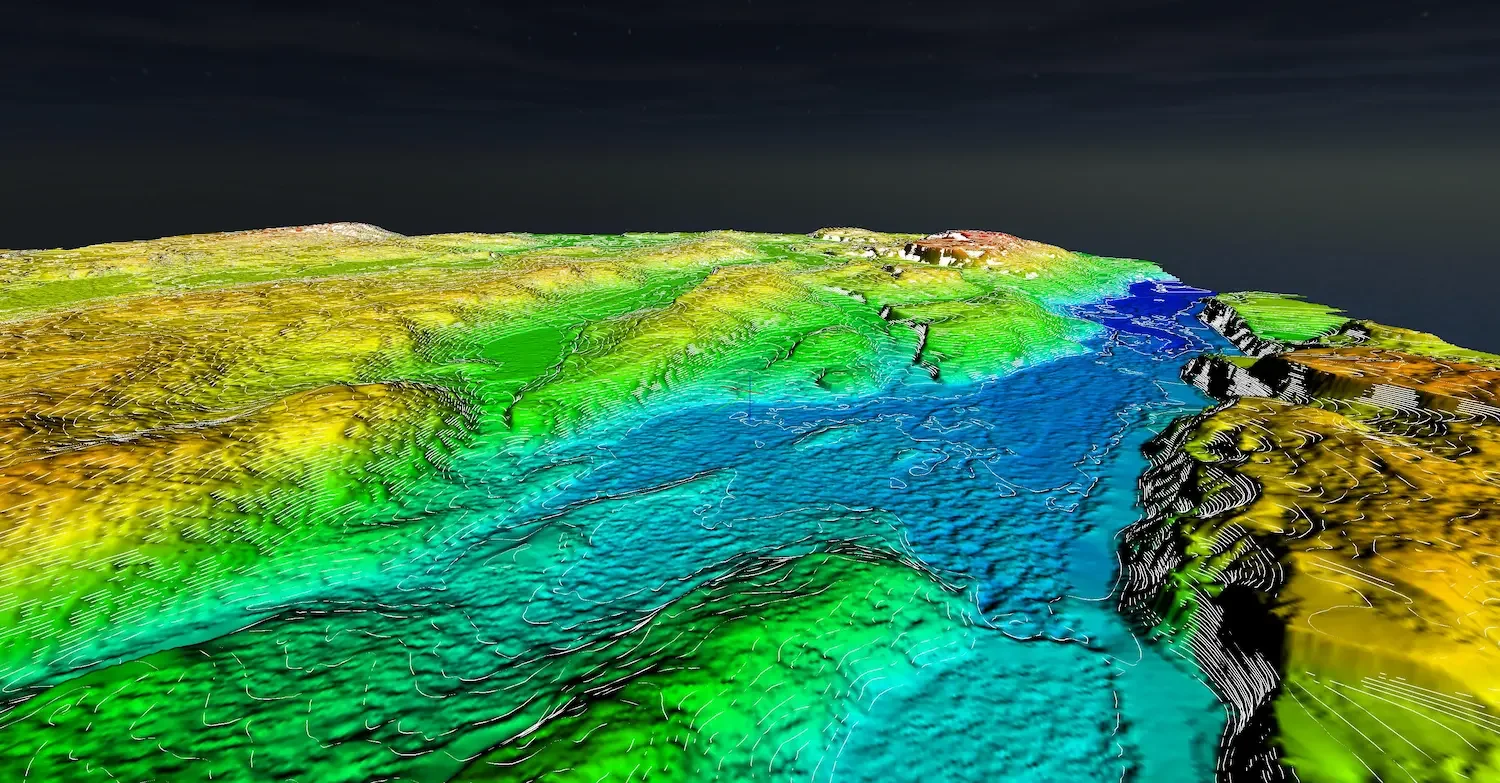

Full classified point cloud with vegetation vs bare earth terrain model showing ground surface.
LiDAR Applications in Muskoka
Precise terrain data for every stage of your cottage country project
New Construction Planning
Accurate topographic data for site design, building placement, and grading plans. Know exactly what you're working with before breaking ground.
Septic System Design
Precise elevation and slope data for septic field layout, setback verification, and drainage planning. Critical for health unit approvals.
Shoreline Documentation
Map waterfront elevation, erosion patterns, and slope stability. Essential baseline data for dock permits and shoreline protection.
Driveway Planning
Design access roads on challenging terrain with accurate grade profiles. Identify cut/fill requirements before construction begins.
Drainage Analysis
Model water flow patterns across your site. Identify low spots, drainage paths, and potential flooding concerns.
Vegetation Mapping
Separate canopy from ground surface. Document tree heights, assess clearing requirements, and plan around mature growth.
The Advantage Over Traditional Methods
In Muskoka's forested terrain, LiDAR provides complete, accurate ground data without extensive clearing or multiple site visits.
Penetrates Dense Canopy
Laser pulses penetrate canopy to map actual ground elevation, even under dense forest cover.
Survey-Quality Accuracy
Vertical accuracy of 2-5cm. Reliable data for engineering and construction planning.
Complete Coverage
Capture the entire site in one flight. No gaps, no interpolation between sample points.
Faster Delivery
Large properties flown in hours. Processed data typically delivered within one week.
LiDAR vs Photogrammetry
< SLIDE TO COMPARE >

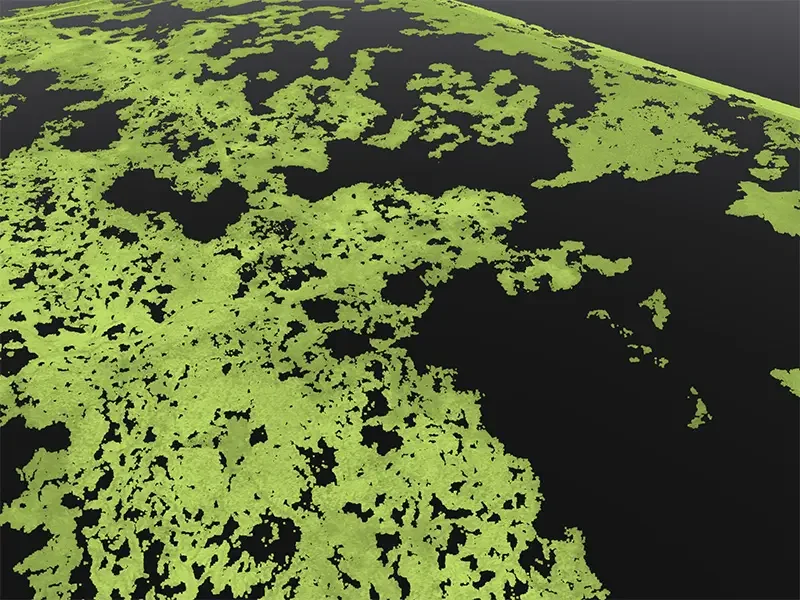

Same forest area: Photogrammetry ground points limited by canopy. LiDAR penetrates to map the ground.
Survey-Quality LiDAR Systems
DJI Zenmuse L3
Up to 350,000 points per second with integrated RTK positioning. Our primary sensor for cottage country terrain mapping with centimeter-level accuracy.
DJI Matrice 400 RTK
Heavy-lift platform with extended flight time. Covers large properties and challenging terrain in fewer flights.
RTK/PPK Processing
All data georeferenced using NRCAN PPP or local base stations. Survey-quality positioning for engineering applications.
Muskoka Coverage
We serve properties throughout the District of Muskoka, from waterfront lots on the major lakes to remote inland sites.
Also Serving Cottage Country
For large or remote properties, contact us to discuss logistics and access requirements.
Deliverables
Classified Point Cloud
Ground, vegetation, and structures separated. LAS/LAZ format compatible with CAD and GIS software.
Digital Terrain Model
Bare earth surface with vegetation removed. GeoTIFF format for grading and drainage analysis.
Contour Lines
AutoCAD-ready contours at your specified interval. Typically 0.25m, 0.5m, or 1m spacing.
Orthomosaic
High-resolution aerial imagery captured alongside LiDAR. Visual context for your terrain data.
LiDAR Mapping Muskoka
How much does LiDAR mapping cost in Muskoka?
Pricing depends on site size, terrain complexity, and travel distance. Contact us with your property location and approximate acreage for a detailed quote.
Can LiDAR really penetrate tree cover?
Yes. LiDAR pulses penetrate gaps in the canopy and return from the ground surface below. In typical Muskoka forest, we achieve 50+ ground returns per square meter, providing dense coverage for accurate terrain modeling even under heavy tree cover.
How accurate is drone LiDAR?
With RTK/PPK positioning, our LiDAR data achieves 2-5cm vertical accuracy and 2-3cm horizontal accuracy. This is suitable for engineering design, grading plans, and construction documentation.
What's the difference between LiDAR and photogrammetry?
Photogrammetry uses photographs to create 3D models, but it only captures what the camera can see. Under tree cover, photogrammetry maps the canopy, not the ground. LiDAR penetrates vegetation to map actual terrain, making it essential for forested properties.
How long does a LiDAR survey take?
Flight time depends on property size, but most cottage lots require 30 to 90 minutes of flying. We can typically complete the field work in a single visit. Data processing and deliverable preparation takes 5 to 7 business days.
Do I need to be on-site during the survey?
Not necessarily. We need property access and a safe launch area, but the owner doesn't need to be present. We'll coordinate access details with you before the scheduled flight.
What file formats do you deliver?
Standard deliverables include LAS/LAZ point clouds, GeoTIFF terrain models, DXF/DWG contour lines for AutoCAD, and georeferenced orthomosaic imagery. We can accommodate specific format requests for your engineering or design software.
Can you survey island properties?
Yes. Drone LiDAR is well-suited to island properties where ground access is limited. We can launch from the mainland, a boat, or a cleared area on the island itself, depending on distance and line-of-sight requirements.
Request Your Muskoka LiDAR Quote
Accurate terrain data for your cottage country project. Tell us about your property and we'll provide a detailed quote.
Request a Quote →Questions? Reach us at 1-416-797-4870 or info@hollandproductions.ca
